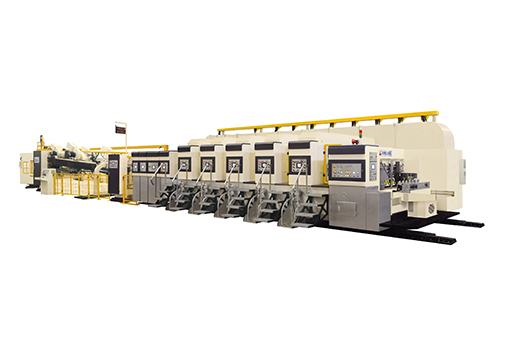

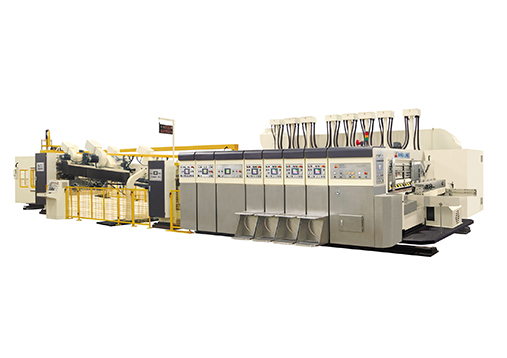

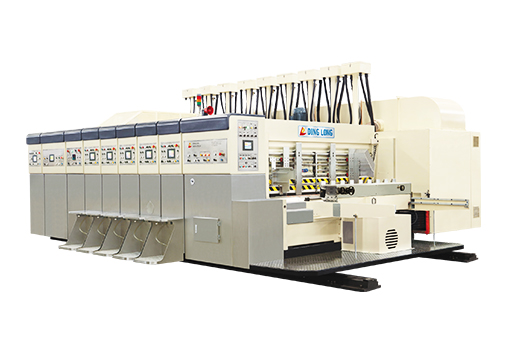

SNOVA-TP FLEXO PRINTER SLOTTER DIE CUTTER

Main Features:

Integrated CNC control system, troubleshooting, production management, remote maintenance.

Quick printing plate mounting, motorized phase zero.

Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.

High precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.

Choose international brand electric components and  transfer  bearings, pass CE certification.

Product performance

Specification:

Model

920

1224

1228

1628

1632

1636

Max.mechnical speed(sheets/min)

300

250

220

180

180

150

Max.feeding size(mm)

900x2000

1200x2400

1200x2800

1600x2800

1600x3200

1600x3600

Skip feeding size(mm)

1100x2000

1500x2400

1500x2800

2000x2800

2000x3200

2000x3600

Max.printing size(mm)

850x1950

1150x2350

1150x2750

1550x2750

1550x3150

1550x3550

Printing plate thickness (mm)

7.2

Min.slotting interval(mm)

AXB Normal

150x150

160x160

AXB Reverse

240x60

250x70
