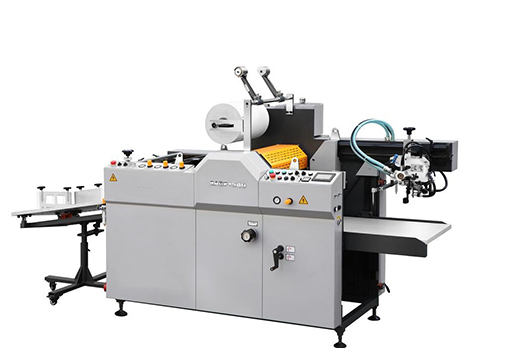

Automatic Thermal Laminating Machine

Specification:

 Model

 FM-540

 Max laminating size

 540x760mm

 Min laminating size

 210x270mm

 Max speed

 30m/min

 Laminating temprature

 0-130°

 Paper weight

 157-400g

 Power

 17kw

 Total Weight

 1000kg

 Overall Dimensions

 3000x1450x1650mm


Product performance

Features:

1.Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.

2.Man-machine interface system : color touch screen simplifies the machine operation. On the touch screen, working status of the machine can be checked at any time.

3.Upper and down heating roller are equipped with special heater for raising temperature. Individual temperature control perfected the temperature keep steady, ensure the precision of the lamination temperature.

4.Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.

5.Pneumatic separator system realizes automatic paper separation.

6.After separation,paper sheets are collected by jogger.

7.Electromagnetic heating for saving electric.
