Main features:
This machine suitable for color top sheet and corrugated paper laminating.
This machine use bottom sheet automatic sent by suction device.Top paper adopt scale continuous paper feeding,top sheet left and right all course correction,unique front gauge positioning way to insure the bottom paper never exceed.Easy operation and maintenance.
Specification:

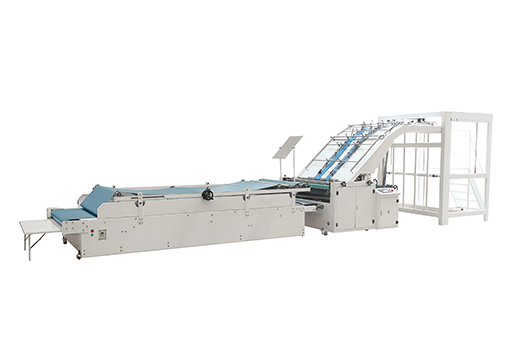

Name | FM-D Automatic flute laminating machine | ||
Model | FM-1300D | FM-1450D | FM-1600D |
Max sheet size(mm) | 1300*1250 | 1450*1250 | 1600*1250 |
Min sheet size(mm) | 370*370 | 370*370 | 370*370 |
Top sheet thickness(g/m2) | 150-600 | 150-600 | 150-600 |
Bottom paper sheet thickness(mm) | 0.5-10 | 0.5-10 | 0.5-10 |
Bottom corrugated sheet thickness(mm) | A、B、C、E、F（Corrugated paper）,（Industrial paperboard）,（ corrugated board） | ||
Max speed | 7000 sheet/hour | 7000 sheet/hour | 7000 sheet/hour |
Fitting precision | ±1mm | ±1mm | ±1mm |
Total power(kw) | 13 | 14 | 15 |
Measurement(mm) | 11500*2200*2600 | 11500*2350*2600 | 11500*2500*2600 |
Weight(ton) | 5 | 5.5 | 6 |
