Main features:

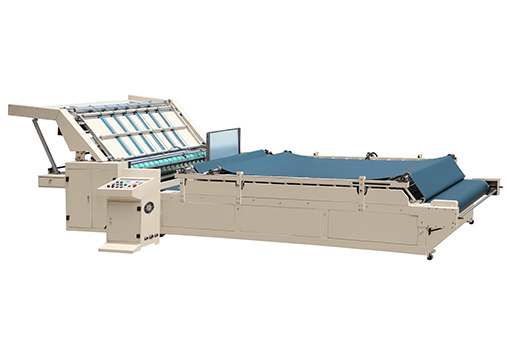

This machine use bottom sheet automatic sent by suction device,and top sheet feeding manually.top sheet left and right all course correction.This humanized design makes paper feeding easier and more efficient.It is suitable for color top sheet and corrugated paper laminating,color top sheet and grey cardboard laminating.
Specification:
Name | FM-C Semi-auto flute laminating machine | ||
Model | FM-1300C | FM-1450C | FM-1600C |
Max sheet size(mm) | 1300*1250 | 1450*1250 | 1600*1250 |
Min sheet size(mm) | 370*370 | 370*370 | 370*370 |
Top sheet thickness(g/m2) | 200-1100 | 200-1100 | 200-1100 |
Bottom paper sheet thickness(mm) | 0.5-10 | 0.5-10 | 0.5-10 |
Bottom corrugated sheet thickness(mm) | A、B、C、E、F（Corrugated paper）,（Industrial paperboard）,（corrugated board） | ||
Speed(m/min) | 0~90 | 0~90 | 0~90 |
Voltage(v) | 380 | 380 | 380 |
Total power(kw) | 9 | 9 | 10 |
Measurement(mm) | 8000*2000*1810 | 8000*2150*1810 | 8000*2300*1810 |
Weight(ton) | 4.5 | 5 | 5.5 |
