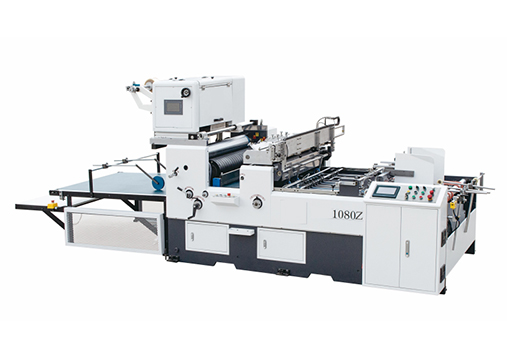

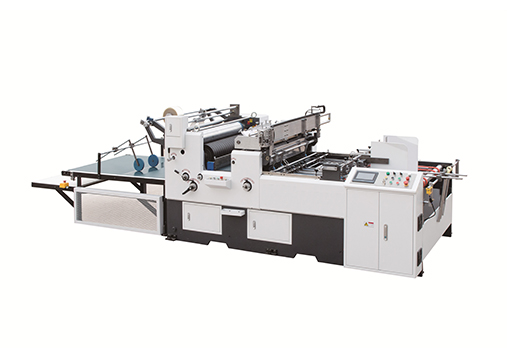

TCP Automatic Window Patching Machine

Description:

TCP-1080/1450 Automatic Window Patching Machines can work with both paperboard and corrugated paper. Standard features include non-stop bottom feeder with side lay registration, flexible glue application module, extremely accurate slitting and cross cuts to produce tissue boxes, gift boxes, toy boxes, shirt boxes, milk cartons and other jobs that involve window film lamination.


Product performance

Specification:

Model

1080A

1450A

Max paper size

1080x650

1450x1100

Min paper size

100x100

100x100

Max. film size

780x450

950x700

Min. film size

40x40

40x40

Film thickness

0.05-0.25

0.05-0.25

Cardboard(g/m²

200-1000

200-1000

Corrugate paper(mm)

≤4.0

≤4.0

Max working speed (s/h)

10000

10000

Total power(kw)

10

12

Overall Dimensions(mm)

4958x1960x1600

6500x2300x1688

Total weight

3

3.8
