Features:
The feeder is intermittent transportation agency.
Adopt imported NITTA belt,and imported pneumatic components.
Deliver the paper with high speed,stable and reliable.
Adopt imported RENOLDL chain.
Film conveyed by servo motor, through the computer tension control, cut angle and creasing on film, paper precise positioning to complete the film fitting process.

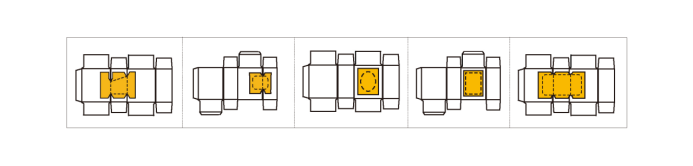

Product type:
Specification:

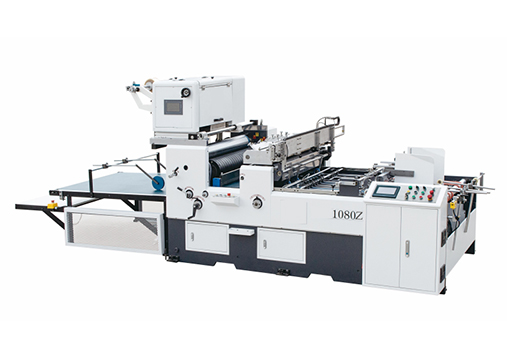

Model | 650Z | 1080Z |
Max paper size | 650x650 | 1080x650 |
Min paper size | 100x100 | 100x100 |
Max. film size | 300x300 | 580x450 |
Min. film size | 40x40 | 40x50 |
Film thickness | 0.05-0.3 | 0.05-0.25 |
Cardboard(g/m² | 200-500 | 200-1000 |
Corrugate paper(mm) | ≤4.0 | ≤4.0 |
Max working speed (s/h) | 7000 | 5000-7000 |
Total power(kw) | 12 | 17 |
Overall Dimensions(mm) | 5800x1600x1600 | 4958x1960x1850 |
Total weight | 3 | 3.3 |
