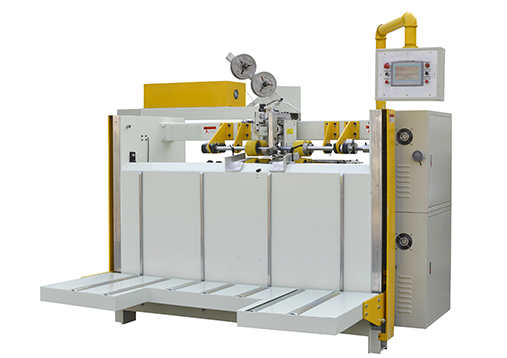

CS2400 Semi-automatic Stitching Machine

Specifications:

Speed:

480stitching time/ min

Stitching distance:

30-100mm(adjustable)

Stitching wire:

1-99 stitcher

Style:

single stitching( / )

double stitching( // )

enhancing stitching( // / or / //)

Stitching size:

2.0mm* ( 0.65~0.75mm )

Max. paper size:

1515*2460mm

Min. paper size:

300*606mm

Total horse power:

6HP

Feeding height:

900mm

Dimension:

2800*2600*2800MM

Weight:

2000kg


Product performance

Features:

● Imported double servo-motor, high precision.

● Touching screen controlling system, easy operation

● SIMENS controlling system

● Backwards electrical clamp, stepless motor driving system, convenient to adjust the size.

● All the electronics are from TAIWAN brands

● Bottom mould and the blades are imported from Japan brand

● The whole stitching wires are made of special iron steel, high precision finishing.

● Different size changing time could be finished in one min, saving time

● Auto counter in Feeding system

● Conveying section has sensor device, auto delivering.

● The collecting section can be programmed for pieces in pile, convenient for wrapping

● Auto-alarm for the stitching wire, when wire finished, will remind operator to re-fill

● Only two operators are needed for whole procedure
