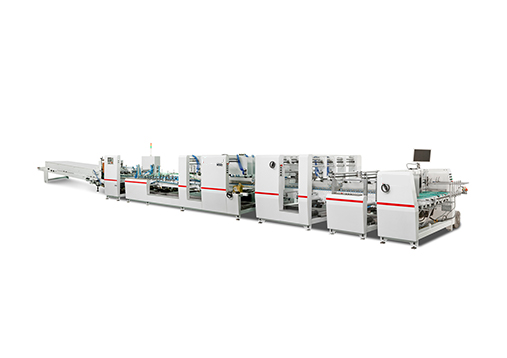

Automatic High Speed 4&6 CornerFolder Gluer

Features:

BENEFOLD series high-speed automatic carton box folder gluer machine using double-sided tooth rod adjustment mechanism, making box is suitable for different specifications, easy to operate.

Gluing POTS on the two devices, suitable for bottom, two side posts.

Cylinder around paste two device for special box type to use.

Using photoelectric counter quantitative count, automatic kick board device marks.

Attached finished product cross send device, easy to finished product collection.

Power transmission using strong gauge belt, high efficiency, low noise, easy maintenance.

High-speed motor adopts frequency conversion, PLC control system, and imported components.

Quick easy operation, beginners to master.

Product performance

Specification:

 Material cardboard,corrugated carton E/B/A flute
 Pre-fold 180° for 1st fold and 135° for 3rd fold
 Max. Speed 300m/min.
 Power consumption 13kw
 Power AC380V 3P50HZ
 Net Weight 7tons
 Dimension 12800 x 2250 x 2120 mm(L x W x H)
