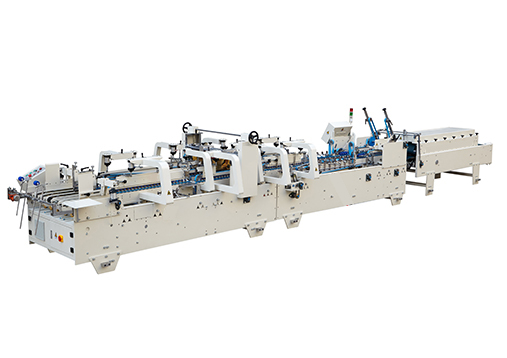

Automatic Lock Bottom Folder Gluer

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.

Product performance

Specification:

Model	600/800AG
Paper Material	Cardboard 200-800g E-flute/F-flute
Max. Liner speed	Max. 220 m/min
Feeding way	Automatically and continuously feeding
Way of folding	Fold 1 and fold 3 are 180°and 135°
	Fold 2 and fold 4 are 180°
	Bottom folded and glued
Glue Material	Water-base cold glue
Electric power	7KW 380V 50HZ 3P
Weight	2500(2700)KG
Over dimension	11000 x1100 (1300)x 1400mm

Box size:

600AG	Type of boxex	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
	No-edged bottom box	700mm	700mm	600mm	110mm	8mm	70mm	51mm
	Edges bottom box	700mm	160mm	570mm	180mm	9mm	90mm	85mm

800AG	Type of boxe	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
	No-edged bottom box	700mm	110mm	800mm	110mm	8mm	70mm	51mm
	Edges bottom box	700mm	160mm	770mm	180mm	9mm	90mm	85mm
