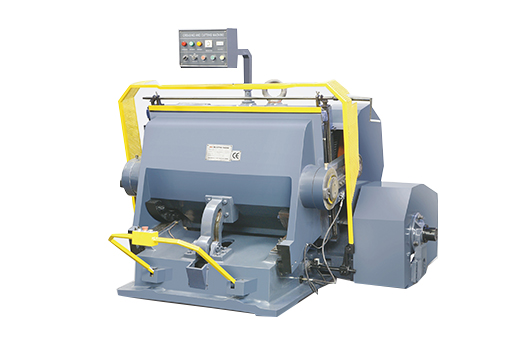

Manual Creasing and Die-cutting Machine

Features:

It is a kind of special equipment for all assortments of common card boards, corrugated boards, plastic sheets, leather products. It is suitable for printing, packing, decorating, plastic industries etc. with the features of firm structure, exquisite marking, greet cutting, high precision, ease of operation, safety and reliability etc.。

Product performance

Specification:

Model	Inner Chase Size	Speed	Max. Rule Length	Motor Power	Machine Weight	Packing (overall) Dimensions
ML750	750*520mm	25	<15m	2.2kw	2000kg	165014001500mm
ML930C	930*670mm	23±3	<25m	4kw	3000kg	175019001700mm
ML930A	930*670mm	23±3	<30m	5.5kw	3500kg	185019501700mm
ML1040	1040*720mm	23±3	<28m	4kw	3500kg	200020101900mm
ML1100A	1100*800mm	22±2	<35m	7.5kw	5000kg	200020101900mm
ML1100	1100*800mm	20±2	<30m	5.5kw	4500kg	202020101900mm
ML1200	1200*820mm	20±2	<32m	5.5kw	5000kg	202020201950mm
ML1300	1300*920mm	15±2	<40m	7.5kw	6000kg	260021001950mm
ML1400	1400*1000mm	15±2	<45m	7.5kw	6500kg	260021001950mm
ML1500	1500*1050mm	14±2	<45m	7.5kw	7000kg	265021002000mm
ML1500G	1500*1150mm	14±2	<45m	7.5kw	7300kg	265021002050mm
