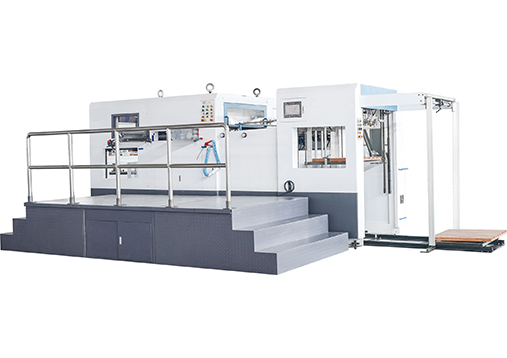

Automatic Die Cutting & Creasing Machine

Features:
CAD-1060 is kind of key equipment applying to die-cutting, creasing, and cold embossing for cartons, paper boxes and paper labels, etc. High-precision intermittent mechanism, pneumatic chase locking mechanism, air clutch, overload protector and special driving device, registration mechanism ensure smooth feeding, accurate registering and order delivery.

Computer control and man-machine interface are adopted to display working state and solution for accident occurs automatically.

Imported control mechanism and key parts with fine assembly ensure stable pressure accuracy registration and safety.

Product performance

Specifications:

Model	CAD-1060
Max. sheet size	1060×760mm
Min. sheet size	400×350mm
Max. die cutting size	1050×750mm
Gripper margin	9-17mm
Inner chase size	1120×786mm
Stock range	90~2000g/m² paper, 0.1~2mm paper, ≤4mm corrugated
Die cutting accuracy	≤±0.1mm
Max. die cutting force	300T/300T
Max. die cutting speed	7500s/h Die cutting
Max. feeder pile height	1600mm (wooden pallet included)
Max. delivery pile height	1400mm (wooden pallet included)
Main motor wattage	11kw
Overall dimension	6300×4200×2350mm (L: paper prepared track included; W: platform included)
Net weight approx	16T/17T
Full Load wattage	16.9kw / 16.9kw
Air requirement	0.6～0.7Mpa, ≥0.37m³/min
